Processor System |

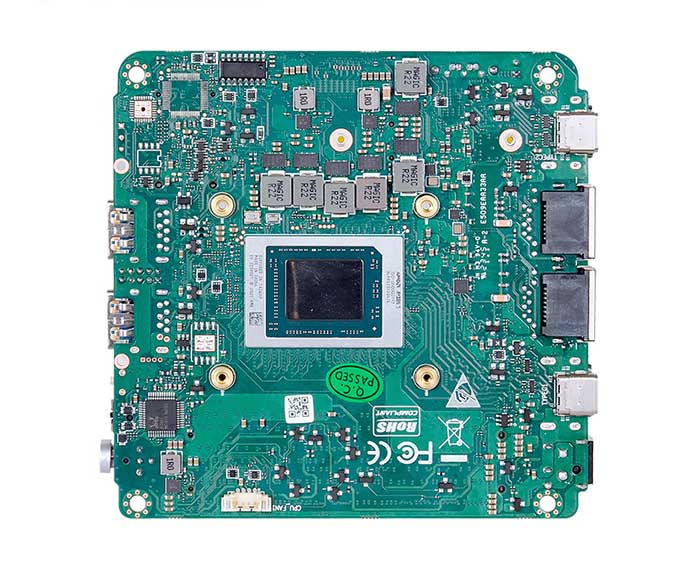

AMD RYZEN 6000/7000 series processor on board, TDP 35W |
|
|
EFI BIOS |
|
Memory |
2*DDR5 SO-DIMM, total max. 64GB |
|
Storage |
1*M.2 M-Key 2280(NVMe PCIe 4.0 x4 protocol) |
|
|
1*SATA3.0 port, 2Pin 5V power supply |
|
Display |
2*HDMI2.0 interface, support 4K@60Hz |
|
|
2*Type-C interface, support DP 8K@60Hz和USB3.0 |
|

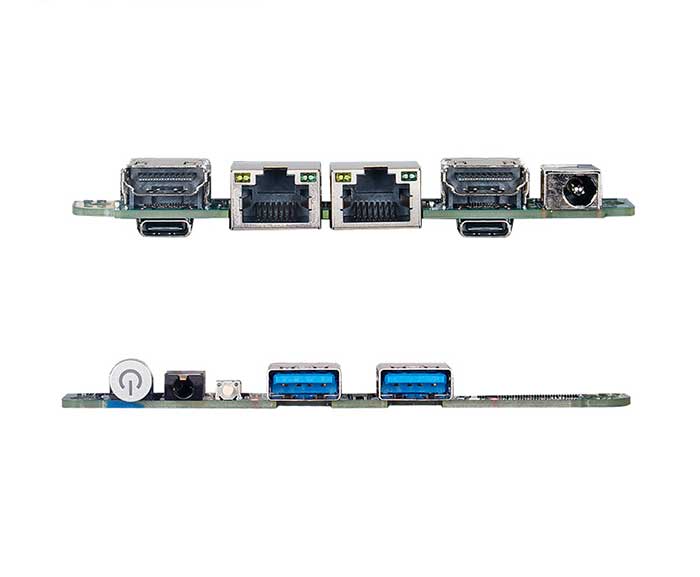

Board Side I/O Interface |
Power on button, 2-in-1 audio jack, reset button, 2*USB3.0 |
|
|
DC JACK, 2*HDMI, 2*Type-C |
|
|
Dual Network (RTL8125B) |
|
Expansion Interfaces/Features |
External TPM2.0 optional, not available by default. Default is CPU built-in TPM2.0 |
|
|
1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module) |
|
|
1*RS232 pin, pitch 2.0mm |
|
|
1*USB2.0 Pin, 2x5Pin, 2.0mm pitch |
|
|
1*4Pin PWM CPU FAN |
|
|
1*FPC (PCIe4.0 4x) |
|
|
1*CIR (not available by default, reserved function, software debugging required) |
|
Power Supply |
DC 12-19V, 90W and above |
|
Operating Environment |
Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90 |
|
|
Storage Temperature: -40°C ~ +85°C; Storage Humidity: 5% ~ 90% |
|
Operating System |
Windows 10, Windows 11, Linux |
|
Dimension |
100x100 mm |
|
Net Weight |
Approx. 120g without heat sink, approx. 220g with heat sink |
