Description :

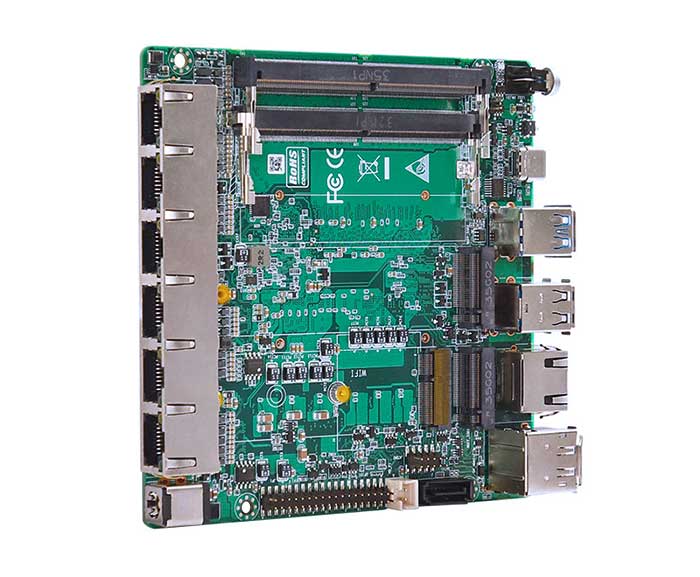

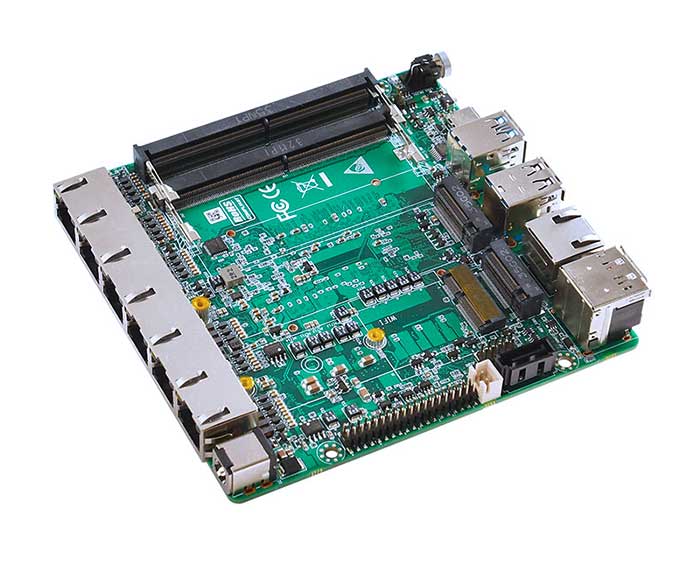

?Onboard Intel 12th/13th-U/-P serial processor
?2*DDR5 SO-DIMM，max support 64GB
?6*2.5G lan port（5*Intel i226-V，1*RTL8156B）
?TPM2.0，2*M.2 2280 SSD，M.2 WIFI
?1*HDMI2.0，1*DP，Type-C（USB3.0+DP）
?DC 12-19V；Size：120x120mm
|
Processor System
|

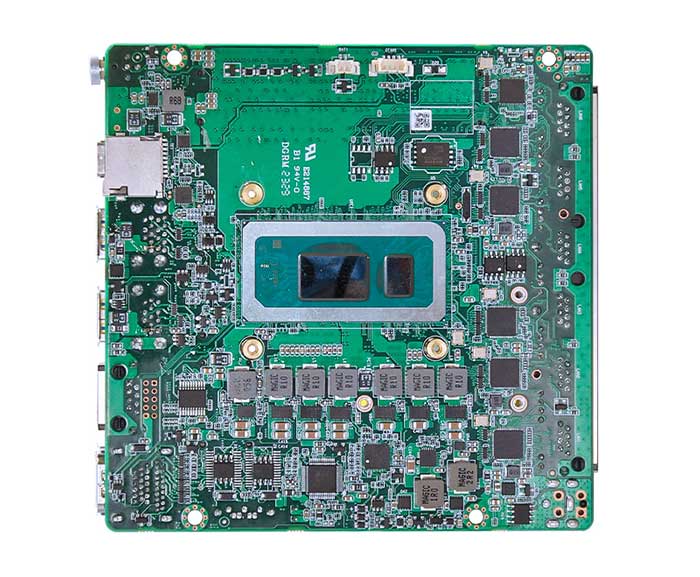

Onboard Intel 12th/13th-U/-P series processor, TDP 35W |
|
|
EFI BIOS |
|
Memory |
2*DDR5 SO-DIMM, total max 64GB |
|
Storage
|
2*M.2 M-Key 2280(NVMe PCIe 4.0 x4/SATA3.0 protocol), order notes |
|
|
1*SATA3.0, 2Pin 5V power supply |
|
Display
|
1*HDMI2.0, support 4096x2160@60Hz |
|
|
1*DP, support 7680x4320@60Hz |
|
|
1*Type-C port, support DP 7680x4320@60Hz和USB3.2 Gen2 |
|

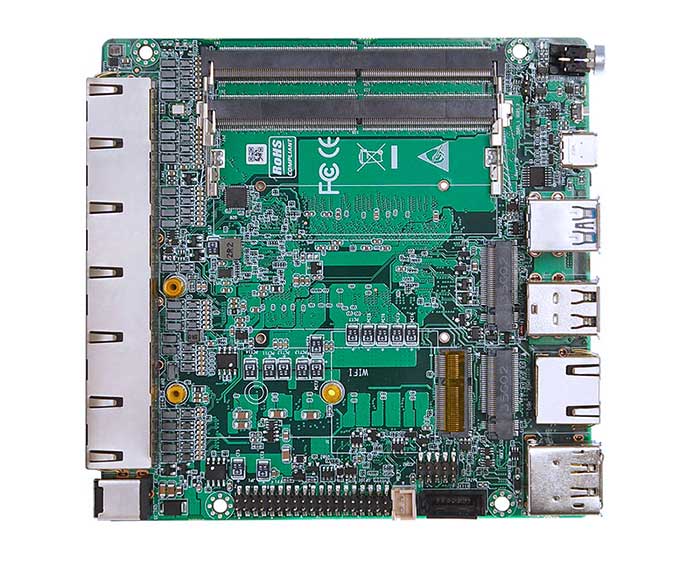

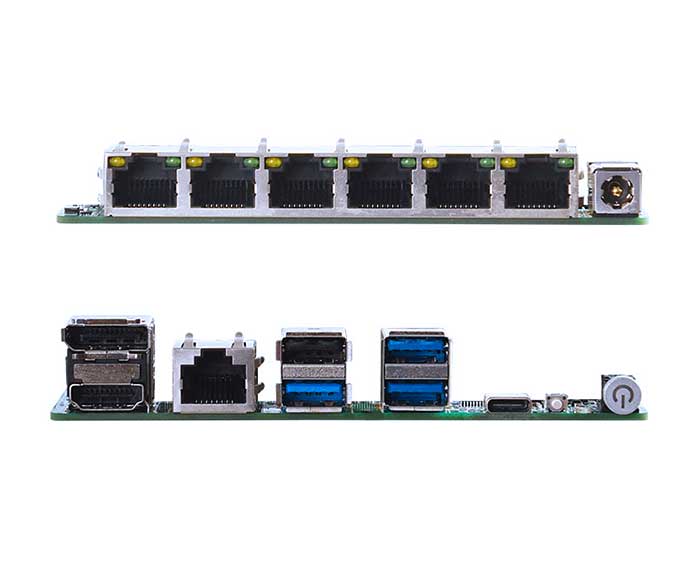

Board Side I/O Interface |
Power on button, reset button, 3*USB3.0, 1*USB2.0 |
|
|
DC JACK, 1*HDMI, 1*DP, 1*Type-C (USB3.0+DP) |
|
|
6*LAN, 1*Console (common LAY with RS232/485 pins), TF card |
|
Expansion Interfaces/Features
|
External TPM2.0 is optional, not available by default. Default is CPU built-in TPM2.0 |
|
|
1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module) |
|
|
1*RS232/RS485 (hardware loading and BIOS setting switching) row of pins, pitch 2.0mm |
|
|
1*USB2.0 Pin, 2x5Pin, 2.0mm pitch; 8 bit GPIO Pin, 2.0mm pitch |
|
|
1*4Pin PWM CPU FAN |
|
Power Supply |
DC 12-19V, 120W or above |
|
Operating Environmen |
Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90 |
|
|
Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90% |
|
Operating System Support |
Windows 10, Windows 11, Linux |
|
Dimension |
120x120 mm |
|
Net Weight |

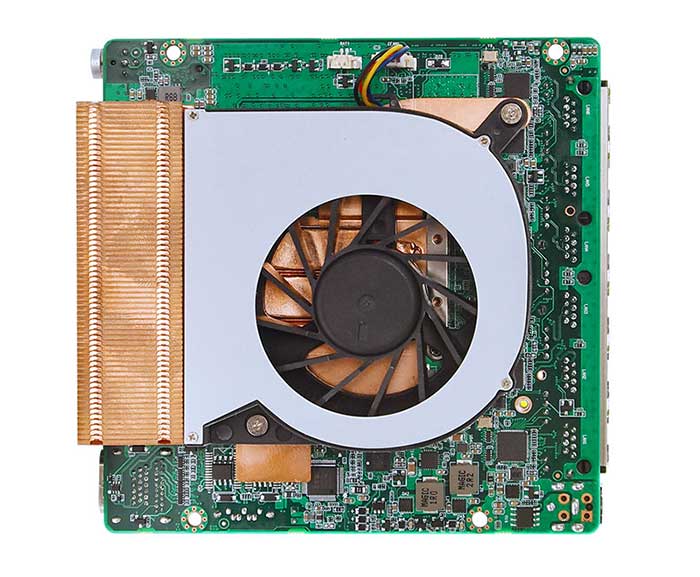

Approx. 130g without heat sink, 250g with heat sink |
